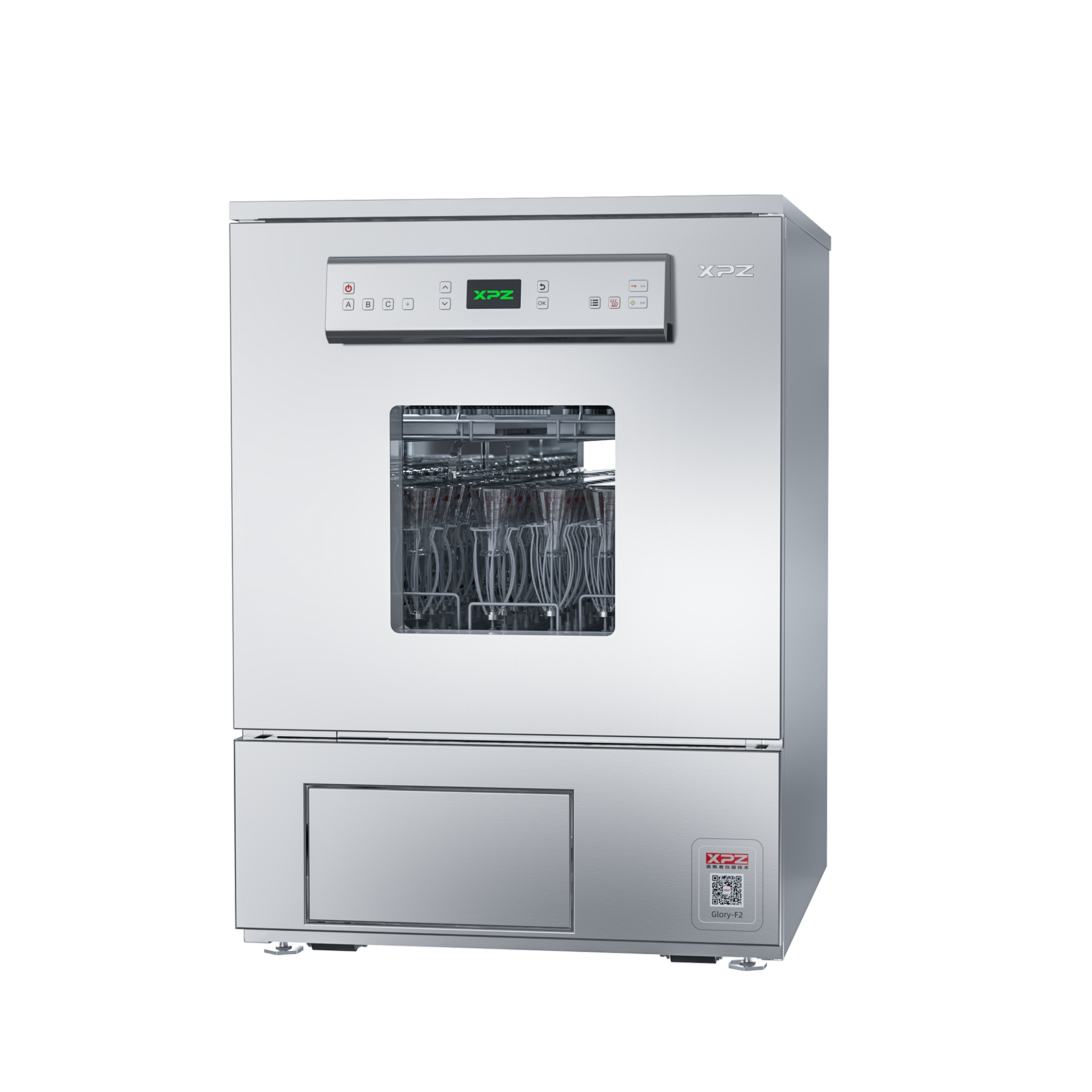

The Glory-2/F2 laboratory fully automatic glassware washer can be embedded under the laboratory bench or installed separately. It can be connected to both tap water and pure water sources. The normal cleaning process involves first using heated tap water and detergent for the main wash, and then using pure water to rinse the cleaned items. This machine will provide you with a convenient and efficient cleaning effect. When you have the need for drying the cleaning vessels, please choose the Glory-F2.
Used for washing conventional glasswares in the laboratory, suitable for washing laboratory glass, ceramic, metal, plastic and other materials (such as volumetric flasks, sample injection vials, triangular flasks, colorimetric tubes, test tubes, petri dishes, heart-shaped bottles, beakers, etc.).
Structure:
304shell & 316L chamber
Control system:
The control system has 35 standard programs and 100 custom setting programs.
Installation requirements:
Power Supply: 220-230V single-phase electricity at 50Hz or 380-400V three-phase five-wire.
Water supply: Municipal tap water and laboratory pure water for rinsing
Power: 4KW / 9KW
Four-stage filtration system:
The coarse filtration at the inlet prevents particulate matter in the water from entering the chamber. The dual sewage circulation filtration helps prevent the re-circulation of particulate matter and debris. The reverse-flow filtration of the circulation pump protects the component lifespan.
Circulation system:
Circulation speed: 0-500L/min, equipped with a circulation speed detection system and an overheat protection device.
Drying system:
Efficient HEPA filter and compressed air drying system can effectively dry the inner and outer surfaces of glassware. The drying system can be started with one click;
The drying temperature and the drying time can be adjusted. The drying model can be purchased as an optional upgrade, Glory-F2.
Parameters:
Series
Item
Glory-2
Glory-F2
Glory
Outside dimension
W612*D750*H830mm
+feet10-24mm adjustable
W612*D750*H830mm +feet10-24mm adjustable
Internal capacity
170L(Built-in lighting control)
170L(Built-in lighting control)
Washing lays
1-3
1-3
Circulation pump flow rate
400L/min
400L/min
Heating power
4kw/9kw
4kw/9kw
Power
220V/380V
220V/380V
Drying methos
Ecodry
Hot air drying
Installation
Embedded / Independent
Embedded / Independent
Door opening
Front-opening
Front-opening
特點描述:
Series
Item
Glory-2
Glory-F2
Glory
Operation pannel
Microcomputer intelligent control, featuring OLED display, waterproof version, stainless steel metal buttons, and equipped with 3 quick cleaning programs. Supports Chinese/Russian/English languages.
Microcomputer intelligent control, featuring OLED display, waterproof version, stainless steel metal buttons, and equipped with 3 quick cleaning programs. Supports Chinese/Russian/English languages.
Washing procedures
35 built-in cleaning programs, and 100 customizable cleaning programs.
35 built-in cleaning programs, and 100 customizable cleaning programs.
Operating authorization
Multi-level operation permission management
Multi-level operation permission management
Door control
Automatic sensor door, with standard viewing window
Automatic sensor door, with standard viewing window
Baskets
Modular basket frame, each layer can accommodate any two modules and conbine freely.
Modular basket frame, each layer can accommodate any two modules and conbine freely.
Monitoring system
Equipped with conductivity monitoring function (optional); Printing function (optional); Large-capacity data storage function
Equipped with conductivity monitoring function (optional); Printing function (optional); Large-capacity data storage function
Reservation function
Appointment washing and delayed shutdown function
Appointment washing and delayed shutdown function
Energy-saving settings
Basket frame monitoring function, water saving, electricity saving, material saving
Basket frame monitoring function, water saving, electricity saving, material saving
Spray arm system
It can adjust the speed according to the types of glasswares , and conduct real-time monitoring to ensure that the speed remains within the set range.
It can adjust the speed according to the types of glasswares , and conduct real-time monitoring to ensure that the speed remains within the set range.
